Reaming Drill Bits Thread Button Bit Wear Resistant For Mining Tunneling Quarrying
Detail Information
Material:
Alloy Steel
Button Material:
Tungsten Carbide
Function:
Hole Enlargement
Thread Type:
R28, R32, T38
Bit Diameter:
76-127 Mm
Gauge Button Angle:
35°
Application:
Mining, Tunneling, Quarrying
Packing:
Wood Box And Pallet
Highlight:
Mining Reaming Drill Bits
,Thread Button Bit Wear Resistant
,Tunneling Thread Button Bit
Product Description

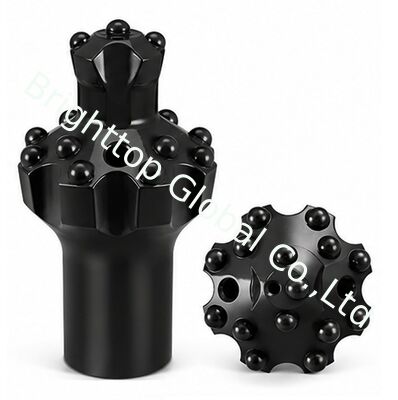

REAMING DRILL BITS
Product Overview
Reaming Drill Bits from Brighttop Global Co., Ltd are engineered for enlarging existing drill holes in mining, tunneling, quarrying, and construction applications. Manufactured with high-quality alloy steel and tungsten carbide buttons, these reaming bits deliver stable drilling performance, excellent wear resistance, and reliable hole enlargement results across various rock formations.
Product Specifications
| S/N | Bit Dia. (mm) | Thread | Gauge Button Size | Front Button Size | Gauge Button Angle | Flushing Holes Side (pcs) | Flushing Holes Front (pcs) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 1 | 76 | R28 | 9 × 12 | 2 × 10 1 × 9 | 35° | 3 | 1 | 1.8 |
| 2 | 76 | R28 | 9 × 12 | 3 × 10 | 35° | 3 | 1 | 2 |
| 3 | 76 | R32 | 9 × 12 | 3 × 10 | 35° | 3 | 1 | 1.8 |
| 4 | 76 | R32 | 9 × 12 | 3 × 10 | 35° | 3 | 1 | 2 |
| 5 | 89 | R32 | 12 × 12 | 3 × 10 | 35° | 2 | 1 | 2.5 |
| 6 | 89 | R32 | 12 × 12 | 3 × 10 | 35° | 2 | 1 | 2.7 |
| 7 | 102 | R32 | 12 × 13 | 2 × 13 1 × 11 | 35° | 2 | 1 | 3.5 |
| 8 | 102 | R32 | 14 × 12 | 4 × 8 | 35° | 2 | 1 | 3.8 |
| 9 | 127 | T38 | 14 × 14 | 2 × 12 1 × 11 | 35° | 2 | 1 | 4.8 |
| 10 | 127 | T38 | 14 × 14 | 3 × 10 | 35° | 2 | 1 | 5.3 |
Packing Information
Wood Box + Pallet
