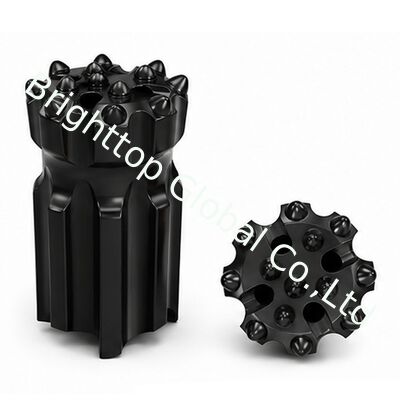

Tungsten Carbide Buttons Retrac Thread Button Bits 35deg Gauge Button Angle
Detail Information
Material:
Alloy Steel
Button Material:
Tungsten Carbide
Design:
Retrac Skirt
Thread Type:
R28, R32, T38
Bit Diameter:
76-127 Mm
Gauge Button Angle:
35°
Benefit:
Improved Hole Straightness
Application:
Top Hammer Rock Drilling
Highlight:
Retrac Thread Button Bits
,Tungsten Carbide Thread Button Bits
,35deg Retrac Button Bits
Product Description
RETRAC THREAD BITS
Product Overview
RETRAC THREAD BITS from Brighttop Global Co., Ltd are engineered for top hammer rock drilling applications in mining, quarrying, tunneling and construction. The innovative retrac skirt design enhances hole straightness and bit retrieval, while premium alloy steel construction and tungsten carbide buttons deliver stable drilling performance, superior wear resistance and reliable service life in medium to hard rock formations.
Product Specifications
| S/N | Bit Dia. (mm) | Thread | Gauge Button Size | Front Button Size | Gauge Button Angle | Flushing Holes Side (pcs) | Flushing Holes Front (pcs) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 1 | 76 | R28 | 9 × 12 | 2 × 10 1 × 9 | 35° | 3 | 1 | 1.8 |
| 2 | 76 | R28 | 9 × 12 | 3 × 10 | 35° | 3 | 1 | 2 |
| 3 | 76 | R32 | 9 × 12 | 3 × 10 | 35° | 3 | 1 | 1.8 |
| 4 | 76 | R32 | 9 × 12 | 3 × 10 | 35° | 3 | 1 | 2 |
| 5 | 89 | R32 | 12 × 12 | 3 × 10 | 35° | 2 | 1 | 2.5 |
| 6 | 89 | R32 | 12 × 12 | 3 × 10 | 35° | 2 | 1 | 2.7 |
| 7 | 102 | R32 | 12 × 13 | 2 × 13 1 × 11 | 35° | 2 | 1 | 3.5 |
| 8 | 102 | R32 | 14 × 12 | 4 × 8 | 35° | 2 | 1 | 3.8 |
| 9 | 127 | T38 | 14 × 14 | 2 × 12 1 × 11 | 35° | 2 | 1 | 4.8 |
| 10 | 127 | T38 | 14 × 14 | 3 × 10 | 35° | 2 | 1 | 5.3 |
Packing Information
Wood Box + Pallet
