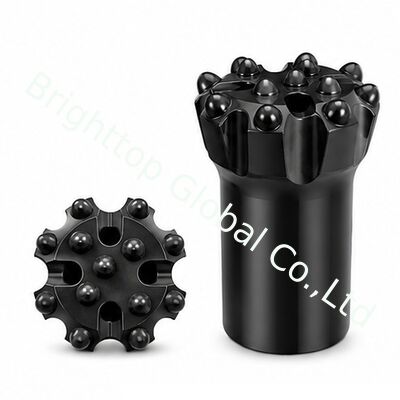

Trapezoidal Standard Thread Button Bits Alloy Steel Body For Rock Drilling
Detail Information
Material:
Alloy Steel Body
Button Material:
Tungsten Carbide
Body Design:
Trapezoidal
Thread Type:
T38, T45, T51, GT60
Bit Diameter:
64-165 Mm
Gauge Button Angle:
35°-40°
Application:
Mining, Quarrying, Tunneling
Packing:
Wood Box And Pallet
Highlight:
Trapezoidal Standard Thread Button Bits
,Rock Drilling Thread Button Bits
,Alloy Steel Threaded Button Bit
Product Description
Trapezoidal Standard Thread Button Bits for Rock Drilling
Product Overview
Trapezoidal Standard Thread Button Bits from Brighttop Global Co., Ltd are designed for top hammer rock drilling in mining, quarrying, tunneling and construction applications. With a trapezoidal bit body design, premium alloy steel and tungsten carbide buttons, these threaded button bits provide stable drilling performance, good wear resistance and reliable service life in medium to hard rock formations.
Product Specifications
| S/N | Bit Dia.(mm) | Thread | Gauge Button Size | Front Button Size | Gauge Button Angle | Flushing Holes Side (pcs) | Flushing Holes Front (pcs) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 1 | 64 | T38 | 6 * 12 | 3 * 11 | 40° | 2 | 1 | 1.6 |
| 2 | 64 | T38 | 6 * 12 | 3 * 11 1 * 9 | 35° | 3 | 1.6 | |
| 3 | 64 | T38 | 8 * 10 | 4 * 10 | 35° | 1 | 2 | 1.6 |
| 4 | 76 | T38 | 8 * 12 | 4 * 12 | 35° | 1 | 4 | 2.4 |
| 5 | 76 | T38 | 6 * 13 | 4 * 12 | 40° | 1 | 2 | 2.45 |
| 6 | 76 | T45 | 8 * 12 | 4 * 12 | 35° | 1 | 4 | 2.5 |
| 7 | 76 | T45 | 8 * 12 | 5 * 11 | 35° | 1 | 4 | 2.5 |
| 8 | 89 | T38 | 8 * 12 | 4 * 12 2 * 10 | 35° | 4 | 3. | |
| 9 | 89 | T38 | 8 * 13 | 5 * 12 | 35° | 1 | 4 | 3.25 |
| 10 | 89 | T45 | 8 * 13 | 4 * 12 2 * 10 | 35° | 4 | 3.3 | |
| 11 | 89 | T45 | 8 * 13 | 5 * 12 | 35° | 1 | 4 | 3.4 |
| 12 | 89 | T51 | 8 * 13 | 4 * 12 2 * 10 | 35° | 4 | 3.4 | |
| 13 | 89 | T51 | 8 * 13 | 5 * 12 | 35° | 4 | 3.4 | |
| 14 | 92 | GT60/TV60 | 8 * 14 | 6 * 12 | 35° | 4 | 5.8 | |
| 15 | 102 | T45 | 8 * 14 | 4 * 12 2-10 | 35° | 4 | 4.2 | |
| 16 | 102 | T45 | 9 * 13 | 9 * 11 | 35° | 3 | 4.3 | |
| 17 | 102 | T51 | 8 * 14 | 4 * 12 2-11 | 35° | 4 | 4.2 | |
| 18 | 102 | T51 | 9 * 13 | 9 * 11 | 35° | 3 | 4.5 | |
| 19 | 102 | GT60/TV60 | 9 * 14 | 9 * 12 | 35° | 3 | 6.5 | |
| 20 | 115 | T45 | 8 * 14 | 4 * 14 3 * 12 | 35° | 4 | 5.5 | |
| 21 | 115 | T45 | 9 * 14 | 10 * 12 | 35° | 3 | 5.8 | |
| 22 | 115 | T51 | 8 * 14 | 4 * 14 4 * 12 | 35° | 4 | 5.5 | |
| 23 | 127 | T45 | 9 * 15 | 10 * 13 | 35° | 3 | 7.1 | |
| 24 | 165 | GT60/TV60 | 9 * 16 | 12 * 16 | 35° | 3 | 15. |
Packing Information
Wood Box+Pallet
