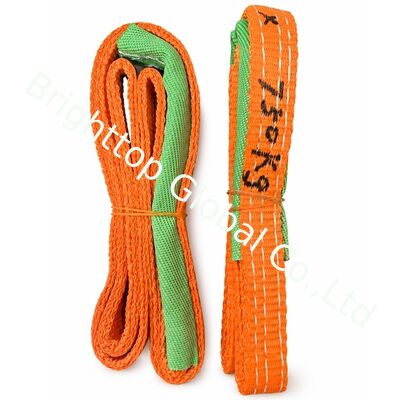

Heavy Duty Nylon Webbing Lifting Sling with Reinforced Protective Sleeves

Product Description

The Heavy-Duty Flat Webbing Lifting Sling with Protective Sleeves is designed for lifting machinery, steel structures, pipes, equipment and other heavy loads where surface protection, flexibility and convenient handling are required.

Made from high-strength synthetic fiber webbing, the sling is lightweight compared with conventional chain or wire-rope lifting assemblies. Its soft and flexible construction allows it to wrap closely around the load, helping reduce scratches, dents and concentrated pressure on finished surfaces.

Reinforced protective sleeves are fitted over the eyes or selected load-contact areas to improve abrasion protection and extend service life under appropriate operating conditions.

Key Features

High-Strength Synthetic Fiber Construction

The sling can be manufactured from high-tenacity polyester, nylon or polypropylene industrial yarns according to the required lifting capacity, elongation, operating environment and applicable standard.

Reinforced Protective Sleeves

Protective sleeves help shield the sling from abrasion and surface wear at lifting points, soft eyes and load-contact areas.

Sleeve length, thickness, color and position can be customized.

Lightweight and Easy to Handle

Synthetic webbing slings are lighter and easier to transport, position and store than many comparable metal lifting assemblies.

Gentle on Load Surfaces

The wide, soft webbing helps reduce scratching, marking and concentrated contact pressure when lifting painted, polished or finished components.

Flexible Load Contact

The sling conforms closely to the shape of the lifted object, making it suitable for irregularly shaped machinery, pipes, steel products and fabricated components.

Stable Lifting Performance

The flat webbing design provides a broad load-contact area and helps support stable, controlled lifting when the sling is correctly selected and rigged.

Corrosion-Resistant Synthetic Material

The synthetic fiber construction does not rust. Material compatibility must still be checked when the sling will be exposed to chemicals, heat, moisture or other demanding conditions.

Customized Lifting Solutions

Working load, length, width, ply construction, eye type, protective sleeve, safety factor, label and packaging can be customized.

Material optional:

Polyester Webbing Sling — PES

Polyester is commonly selected for general industrial lifting applications where controlled elongation, dimensional stability and good handling performance are required.

Recommended product name:

Polyester Flat Webbing Sling with Protective Sleeves

Nylon Webbing Sling — Polyamide/PA

Nylon slings may be selected for applications requiring greater elasticity or shock-absorbing characteristics. Exact elongation and chemical compatibility should be confirmed for each model.

Recommended product name:

Nylon Flat Webbing Sling with Protective Sleeves

Polypropylene Webbing Sling — PP

Polypropylene offers a lightweight option for selected lifting environments. Its temperature limit, load capacity and chemical suitability must be confirmed before use.

Advantage:

Lightweight but Strong

The high-strength synthetic webbing provides substantial lifting capacity while remaining easier to carry and position than many conventional metal slings.

Helps Protect the Lifted Load

The soft sling body and broad contact area help reduce surface scratches, dents and pressure marks on sensitive equipment.

Reinforced High-Wear Areas

Optional protective sleeves improve abrasion protection at the eyes, lifting points and load-contact sections.

Easy Identification

Standard color coding, capacity stripes and clearly printed labels help operators identify the sling specification and Working Load Limit.

Custom Length and Capacity

Slings can be manufactured according to the required effective working length, lifting capacity, eye configuration and operating conditions.

Suitable for Multiple Industries

The product can be configured for general lifting, machinery installation, steel handling, ports, shipyards, warehouses and construction projects.

Safe Use Guidelines

• Check the sling label and WLL before every lift.
• Inspect the sling body, stitching, eyes and protective sleeves before use.
• Do not use a sling with cuts, broken yarns, damaged stitching, heat damage or an unreadable label.
• Do not exceed the rated Working Load Limit.
• Do not tie knots in the sling.
• Avoid twisting the sling during lifting.
• Protect the sling from sharp edges and abrasive corners.
• Confirm that the lifting points are smooth and properly sized.
• Consider sling angle and lifting configuration when calculating capacity.
• Keep personnel away from suspended loads.
• Do not drag the sling across rough floors or sharp surfaces.
• Do not use the protective sleeve as evidence that the sling is cut-proof.
• Store the sling in a clean, dry and ventilated location.
• Follow the manufacturer’s instructions and applicable local lifting regulations
