Brighttop DTH Drill Bits Wear Resistant For Mining Quarrying Global
Brighttop DTH Drill Bits
,Wear Resistant DTH Drill Bits
,Quarrying Dth Hammer Bit

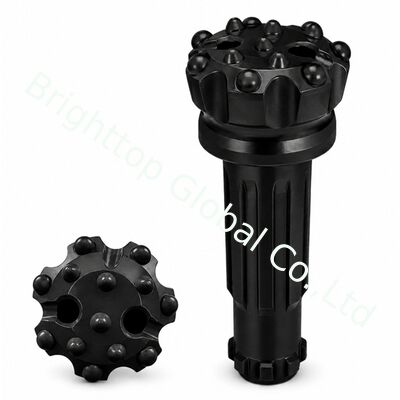

DTH Drill Bits
Brighttop Global Co., Ltd. supplies durable DTH drill bits designed for mining, quarrying, blast-hole drilling, water well drilling, geothermal drilling and construction applications. The bits work with compatible down-the-hole hammers to deliver impact energy directly to the rock at the bottom of the hole.
Manufactured from selected alloy steel and fitted with wear-resistant cemented carbide buttons, our DTH hammer bits provide a reliable balance of penetration performance, wear resistance and service life. Optimized face grooves and flushing holes help remove rock cuttings efficiently and reduce repeated crushing during drilling. Alloy-steel bodies, carbide buttons and efficient flushing structures are also standard design priorities among established DTH-tool manufacturers.
Different face designs can be supplied to suit varying rock formations and drilling conditions. Common options include flat face, concave face and convex face, while carbide button profiles may include spherical and ballistic designs. Face geometry influences penetration, hole stability, flushing and bit wear, so the correct configuration should be selected according to rock hardness and abrasiveness.
Multiple diameters and shank configurations are available for different DTH hammer systems. Common shank options may include DHD, COP, QL, Mission and SD types, depending on the required hammer model. Customized button arrangements, face designs, packaging and OEM services are also available.
| 3" DTH DRILL BIT: available in BR3,COP32,QL30 link structure. | |||||||
| Bit Dia. | No. Button Size | ||||||
| mm | in | Gauge Button | Mid Button | Front Button | Gauge Button Angle | No. Flushing Holes (pcs) | Weight (kg) |
| 90 | 3 9/16 | 6*14 | 4*12 | 40° | 2 | 4.8 | |
| 95 | 3 3/4 | 7*14 | 5*12 | 40° | 2 | 5 | |
| 100 | 3 15/16 | 7*14 | 5*14 | 40° | 2 | 5.3 | |
| 105 | 4 1/8 | 7*14 | 5*14 | 40° | 2 | 5.5 | |
| 110 | 4 1/3 | 7*14 | 6*14 | 40° | 2 | 5.8 | |
| 4" DTH DRILL BIT: Available in Mission 40, QL40, S40, K4 link structure. | |||||||
| Bit Dia. | No. Button Size | ||||||
| mm | in | Gauge Button | Mid Button | Front Button | Gauge Button Angle | No. Flushing Holes (pcs) | Weight (kg) |
| 105 | 4 1/8 | 7*14 | 4*14 | 2*14 | 38° | 2 | 7.6 |
| 110 | 4 5/16 | 7*16 | 4*14 | 2*14 | 38° | 2 | 7.8 |
| 115 | 4 1/2 | 7*16 | 4*14 | 2*14 | 38° | 2 | 8.2 |
| 120 | 4 3/4 | 7*16 | 4*14 | 2*14 | 38° | 2 | 8.7 |
| 125 | 4 15/16 | 7*16 | 4*14 | 3*14 | 38° | 2 | 8.9 |
| 130 | 5 1/8 | 7*16 | 4*14 | 3*14 | 38° | 2 | 9.4 |
| 140 | 5 1/2 | 7*18 | 4*14 | 3*14 | 38° | 2 | 9.8 |
| 150 | 6 | 8*18 | 5*14 | 3*14 | 38° | 2 | 10.3 |
| 5" DTH Drill Bit:Available in Mission 50, QL50, QSS50, K5 link structure. | |||||||
| Bit Dia. | No. Button Size | ||||||
| mm | in | Gauge Button | Mid Button | Front Button | Gauge Button Angle | No. Flushing Holes (pcs) | Weight (kg) |
| 132 | 5 3/16 | 7*18 | 4*15 | 3*14 | 40° | 2 | 14.9 |
| 138 | 5 1/2 | 7*18 | 4*15 | 3*14 | 40° | 2 | 15.2 |
| 146 | 5 3/4 | 8*18 | 8*14 | 40° | 2 | 15.8 | |
| 152 | 6 | 8*18 | 8*14 | 40° | 2 | 18.2 | |
| 165 | 6 1/2 | 9*18 | 6*16 | 4*16 | 40° | 3 | 22 |
| 180 | 7 7/8 | 9*18 | 6*16 | 4*16 | 40° | 3 | 19.5 |
| 190 | 7 1/2 | 9*18 | 6*16 | 4*16 | 40° | 3 | 22.5 |
| 195 | 7 11/16 | 9*18 | 6*16 | 4*16 | 40° | 3 | 22.9 |
| 6" DTH Drill Bit: Available in Mission 60, QL60, SD6, K6 link structure. | |||||||
| Bit Dia. | No. Button Size | ||||||
| mm | in | Gauge Button | Mid Button | Front Button | Gauge Button Angle | No. Flushing Holes (pcs) | Weight (kg) |
| 152 | 6 1/16 | 8*18 | 8*16 | 40° | 2 | 22.9 | |
| 165 | 6 1/2 | 8*18 | 8*16 | 40° | 2 | 23.3 | |
| 180 | 7 1/16 | 9*18 | 6*16 | 4*16 | 40° | 3 | 25.8 |
| 190 | 7 1/2 | 9*18 | 6*16 | 4*16 | 40° | 3 | 28 |
| 195 | 7 5/8 | 9*18 | 6*16 | 4*16 | 40° | 3 | 29.7 |
| 203 | 8 | 10*18 | 8*18 | 6*16 | 40° | 2 | 31 |
| 216 | 8 1/2 | 10*18 | 8*18 | 6*16 | 40° | 2 | 33.6 |
| 8" DTH Drill Bit:Available in Mission 80, QL80, SD8, K8 link structure. | |||||||
| Bit Dia. | No. Button Size | ||||||
| mm | in | Gauge Button | Mid Button | Front Button | Gauge Button Angle | No. Flushing Holes (pcs) | Weight (kg) |
| 203 | 8 | 10*18 | 8*18 | 6*16 | 40° | 2 | 47.8 |
| 216 | 8 1/2 | 10*18 | 8*18 | 6*16 | 40° | 2 | 52.9 |
| 219 | 8 5/8 | 10*18 | 8*18 | 6*16 | 40° | 2 | 54 |
| 229 | 9 | 10*18 | 8*18 | 7*16 | 40° | 2 | 57 |
| 235 | 9 1/4 | 12*18 | 12*18 | 8*16 | 40° | 2 | 57.5 |
| 254 | 10 | 12*18 | 12*18 | 8*16 | 40° | 2 | 61 |
| 278 | 11 | 12*18 | 20*18 | 9*16 | 40° | 2 | 71 |
Key Features
- Selected alloy-steel bit body
- Wear-resistant cemented carbide buttons
- Efficient air flushing and cuttings removal
- Stable penetration in demanding rock formations
- Flat, concave and convex face options
- Spherical and ballistic button profiles
- Multiple diameters and shank types available
- OEM specifications and customized packaging supported
Main Applications
- Open-pit and underground mining
- Quarrying and stone extraction
- Blast-hole drilling
- Water well drilling
- Geothermal drilling
- Foundation and construction drilling
- Road and railway projects
